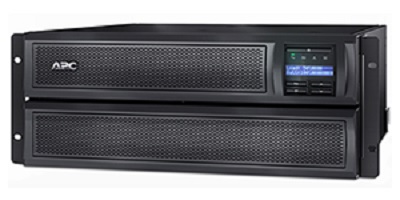

UPS APC Smart-X 2000VA – SMX2200HV
Descripción
| Output Power Capacity |
1980 Watts / 2200 VA
|
|
| Max Configurable Power (Watts) |
1980 Watts / 2200 VA
|
|
| Nominal Output Voltage |
208V , 230V
|
|
| Output Voltage Distortion |
Less than 5%
|
|
| Output Frequency (sync to mains) |
50/60Hz +/- 3 Hz
|
|
| Other Output Voltages |
208, 220, 240V
|
|
|
Line Interactive
|
||
| Waveform Type |
Sine wave
|
|

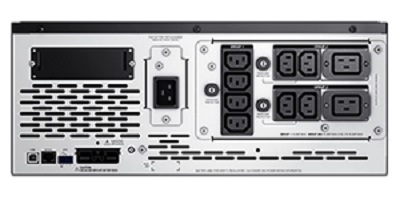

| Output Connections |
(2) IEC 320 C19 (Battery Backup) , (2) IEC Jumpers (Battery Backup) , (8) IEC 320 C13 (Battery Backup)
|
| Nominal Input Voltage |
208V , 230V
|
|
| Input Frequency |
50/60 Hz +/- 3 Hz (auto sensing)
|
|
| Input Connections |
British BS1363A , IEC-320 C20 , Schuko CEE 7 / EU1-16P
|
|
| Cord Length |
2 meters
|
|
| Input voltage range for main operations |
140 – 280 V
|
|
| Other Input Voltages |
220 , 240
|
|
| Maximum Input Current |
0 A
|
|
| Input Breaker Capacity |
0 A
|
| Battery Type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
|
|
| Included Battery Modules |
0
|
|
| Battery Slots Empty |
0
|
|
| Typical recharge time |
3 hour(s)
|
|
| Replacement Battery |
APCRBC143
|
|
| RBC Quantity |
1
|
| Interface Port(s) |
SmartSlot , USB
|
|
| Available SmartSlot™ Interface Quantity |
1
|
|
| Control panel |
LED status display with On Line : On Battery : Replace Battery and Overload indicators , Multi-function LCD status and control console
|
|
| Audible Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays
|
|
| Emergency Power Off (EPO) |
Yes
|
